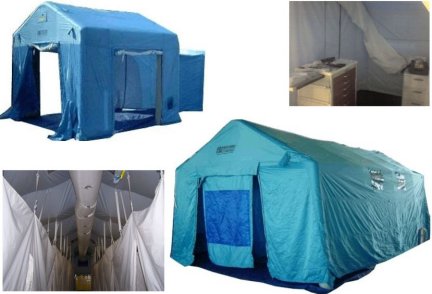

DAT®4070 Approx. 13’ W X 23’ L X 9’ H (3.96 M X 7 M X 2.74 M) – Shelter only, 300 sq. Ft., 250 lbs. (112 Kg) Carton size approx. = 126 X 63 X 45 cm (50” L X 25” W X 18” H). 4 windows – two on each side, 2 skylights, 2 (two) 14”/35 cm HVAC/clothes inlet/outlets with tie closures, 12 stainless steel stakes and ground anchor points.
Air pressure internally once inflated = 4.3 psi (0.3 bar) SA Federal Standard FS # 191, 5041/5102/5134/5970 Test method structural test results. Cover: Heavy duty 420 denier nylon coated w. polyurethane (PVC) on both sides. UV/chemical resistant/fire retardant.
Call for pricing

Floor: PVC coated .52 mm polyester.

Color: Standard color is ‘EMS’ Blue exterior w. high visibility white inside color. Green and White exterior canopy color also available at no extra cost.
Other colors optional with an extra charge.

All Shelters have full privacy zipper closure and full screen zipper closure slip in and out dirty entry/clean exit doors, air inflation valve, one air inflation
hose w. safety cord, pressure relief valve, tie down ropes and 4 D-rings to tie off to, repair kit, manual, carry bag, 2 upper air vents, and a hammer.
All canopy walls are velcro’d to the floor air berms for air lock, and reflective striping is found on the upper air vents above doors and on entry and exit
integral shower stall air berms. Units can attach to a second shower or FSI shelter. Simply inflate the unit and commence use in approx. 1 - 4 minutes
(size of shelter dependent).

Every FSI DAT® series shelter comes complete with electric inflator/deflator, and high pressure scba fitting. All units supplied w. no charge redundant features allowing for - hanging undress/redress kits etc. on the inlet and outlet side.
All DAT® series shelters available with cross and center divider curtains, side doors, extra windows, skylights, HVAC/clothing ducts with ties, etc. Quadruple overlapped and glued seams that result in a system that stands for weeks and weeks on end in any and all weather conditions and temperatures without need of re-inflation. In addition FSI uses the same heavy duty air berm materials in all shelters as are used in the highly respected and very rugged FSI Rescue Boat range – for the most cut and abrasion resistant products on the market.

FSI employs a tapered air berm structure for added strength and double interlocking air berms with fill ports on each end to prevent total shelter collapse in the very unlikely event of air berm failure. FSI uses an integral base air berm around the entire bottom edge of the shelters for added structural strength and excellent lateral strength in high wind conditions of up to 70 mph plus.
